SMB Connectors
Subminiature coaxial connectors with 50%3F impedance for applications up to 4GHz. Suited for cables with dielectric diameters of up to 1.5mm. The connectors are pushed together and engaged with a retaining recess. Rapid connection and disconnection even in limited space and high packing factor. Subminiature coaxial connectors satisfy the need of the modern electronics industry for miniaturization of components and can be used in virtually all fields of electronics.

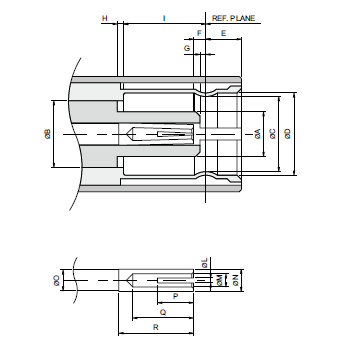

50%3F Interface Mating Dimensions

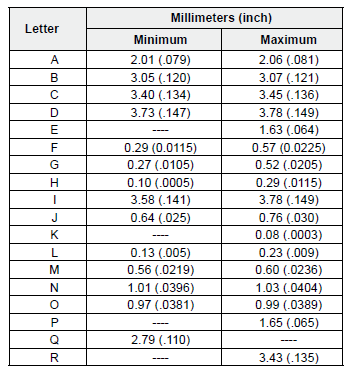

Male

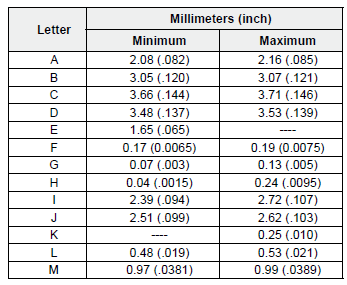

Female
