MMCX connectors
MMCX connectors are smaller than MCX connectors and are used from DC up to 6 GHz in applications where a tiny size is crucial.

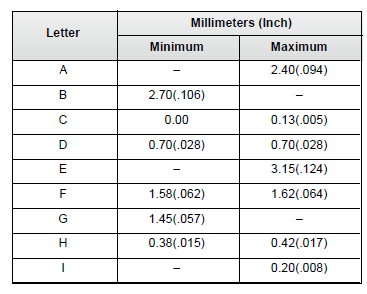

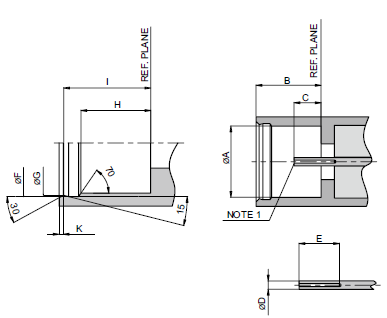

Interface Mating Dimensions
Male
Female
Notes
ID to meet VSWR and contact resistance when mated with .48/.53mm diameter pin.
