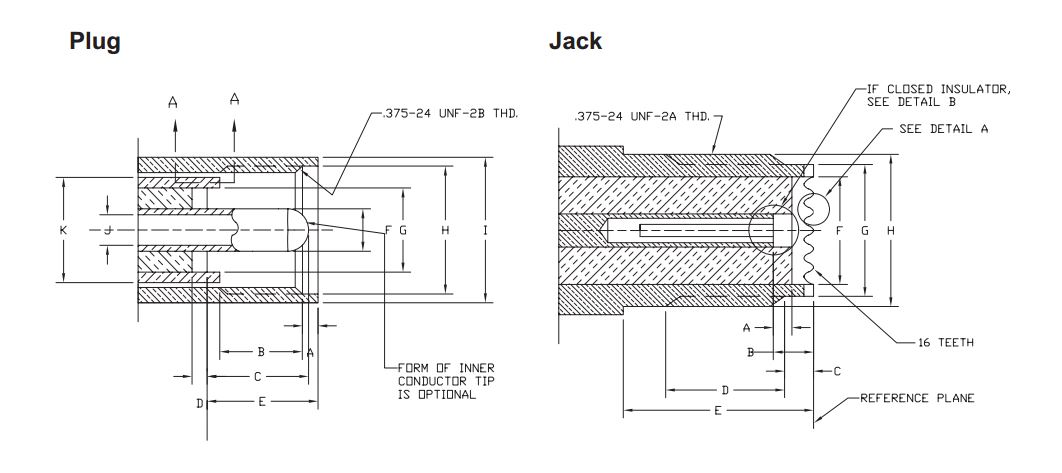

MINI-UHF CONNECTOR SERIES
Miniature versions of UHF connectors, Mini-UHF connectors are designed for applications where size, weight, and cost factors are critical. With a miniature 3/8-24 thread size, these connectors provides excellent RF performance for applications up to 2.5 GHz. Mini-UHF connectors terminate to RG-58, RG-58A, RG-58B, RG-58C, and Belden 9258 cables. Crimp-type cable plugs and jacks are available as well as panel and printed circuit board receptacles.
| Electrical | |
| Impedance | 50 Ohm |
| Frequency Range | 0-2 GHz |
| Voltage Rating (Sea Level) | 335 volts |
| Dielectric Withstanding Voltage | 1000 VRMS |
| VSWR | 1.25 max |
| Insulation Resistance | 5000 M%3F min |
| Environmental | |
| Temperature Range | -55°C to 85°C |
| Shock | Mil-STD-202 |
| Vibration | Mil-STD-202 |
| Thermal Shock | Mil-STD-202 |
| Salt Spray | Mil-STD-202 |
| Mechanical | |
| Mating | 3/8-24 threaded coupling |
| Cable Affixment (Braid) | Crimp |
| Cable Affixment (Center Contact) | Crimp |
| Cable Retention | 40 lb min |
