HN male RG213 with HDPE radiation
resistant high density polyethylene diel
Jyebao HN3200-0213/HDPE
377,90 kr.
Pris inkl. moms: 472,38 kr.
74710HDPE-J
HN Connectors
HN are medium sized 50 Ohm connectors suitable for applications up to 4 GHz. They are high voltage connectors designed for use when a better R.F. and mechanical performance than N series connectors is required.
Interface Mating Dimensions

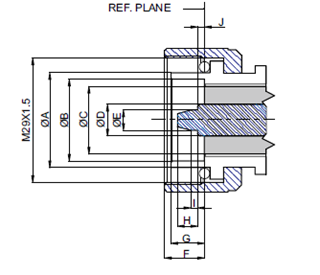

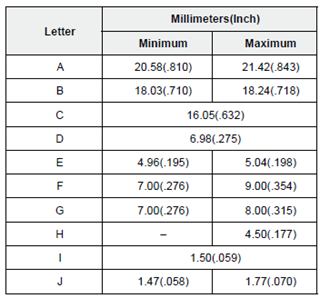

Male

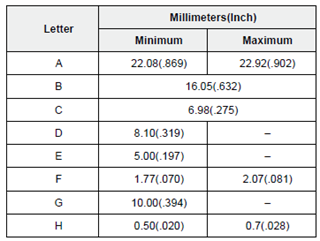

Female
Note:
- I.D. of outer contact when inserted into a .548 maximum diameter ring gauge shall be .432 minimum
- Jyebao HN connectors meet the interface requirements of MIL-STD-348A C
