F Connectors
F connectors are 75%3F impedance connectors for applications up to 2GHz.
Interface Mating Dimensions

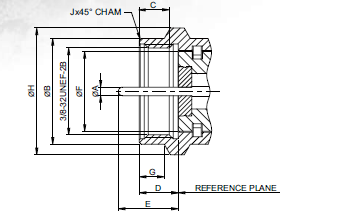

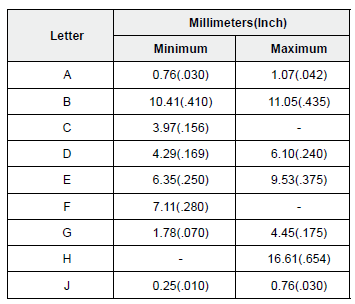

Male
NOTE: Complies With ANSI/SCTE 124 2006 Standard

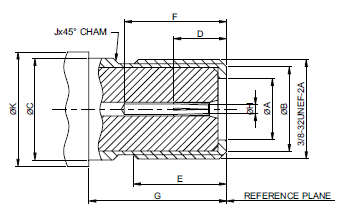

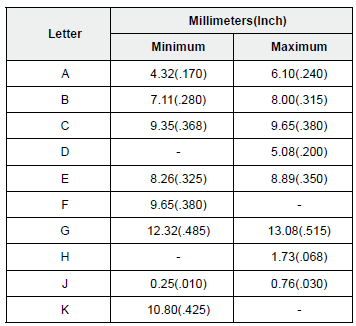

Female (outdoor)
NOTE: Complies With ANSI/SCTE 01 2006 Standard

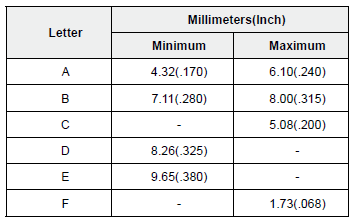

Female (indoor)
NOTE: Complies With ANSI/SCTE 02 2006 Standard
