Beskrivelse
UHF male clamp for Aircell 7
This connector is characterized by the special properties of the inner conductor as well as the outer casing. By using a copper nickel alloy and a specially doped stainless steel and the special shape of the inlay a significantly increased mechanical stability and electrical connective is the result.
This connector is designed for high performance and mechanical strength
stress usage.
The insulations consist of PTFE, a material which resists easily high temperatures while soldering.
Mechanical specifications:
Cables: Aircell 7
Inner conductor: solder
Outer conductor: screw
Coupling tourque: 4-6 Nm
Electrical specifications:
Impedance: 50 Ω
Return loss: ≤ -30,9 dB @ 200 MHz
Insertion loss: ≤ 0,05 dB
This connector is designed for high performance and mechanical strength
stress usage.
The insulations consist of PTFE, a material which resists easily high temperatures while soldering.
Mechanical specifications:
Cables: Aircell 7
Inner conductor: solder
Outer conductor: screw
Coupling tourque: 4-6 Nm
Electrical specifications:
Impedance: 50 Ω
Return loss: ≤ -30,9 dB @ 200 MHz
Insertion loss: ≤ 0,05 dB
Spring produktgalleriet over
Relaterede produkter

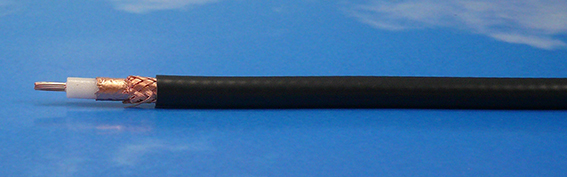

Aircell 7 Low Loss Coax 50ohm 505m
