MA DAB SC PROCOM ANTENNE 223-240 Mhz
MA DAB SC PROCOM ANTENNE 223-240 Mhz
Omni Antennas MA DAB SC
Base Station and Marine DAB Antenna with Low Weight and Wind Load
The dimensions of this base station, marine and receiving DAB (Digital Audio Broadcast) antenna are kept as small as possible to reduce weight, wind load and cost.
Despite the small dimensions the efficiency is very high.

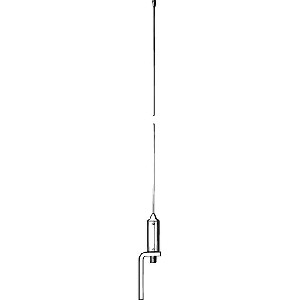

The tapered ½ λ stainless steel radiator together with the chromed brass housing and stainless steel corner bracket constitute an antenna tough and ready to cope with the corrosive environment at the masthead.
The end-fed dipole principle makes the antenna independent of ground-plane, radials or other auxiliary arrangements.
The antenna whip should not be mounted parallel or near other metal parts, such as windex, supporting wires etc. Free mounting and as high as possible is preferable, otherwise the SWR and the radiation diagram will be influenced.
